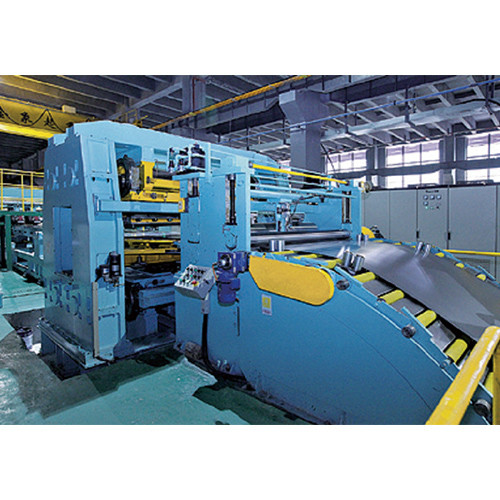

Cut to Length with Oscillating Shear

Category: Coil Processing Line
Views: 711669

You can make an inquiry about this product.
Your e-mail will not be leaked.

◆ Cutting accuracy and precision thanks to the machine solidity.

◆ High quality on flatness.

◆ High precise cut to length control.

◆ Exact oscillating angle.

◆ Surface with high quality.

◆ High efficiency for production.

◆ Delightful man-machine interface.

Technical Specifications:

Model	1650	1850
Processing material	Cold-rolled steel coil, Galvanized coil, Color-coated coil, etc.
Processing sheet thickness	0.5mm-2.5mm	0.5mm-2.5mm
Processing sheet width	1650mm (MAX)	1850mm (MAX)
Coil weight permitted	20ton (MAX)	20ton (MAX)
Cutting accuracy	±0.2mm
Angle accuracy	±3’
Line speed	80m/min
